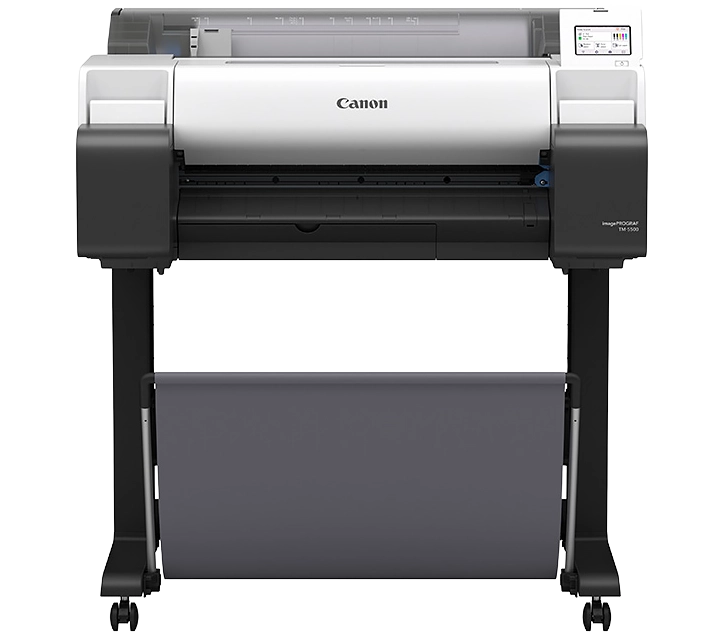

Sebelumnya Canon Colour imagePROGRAF TM-5500
Canon Colour imagePROGRAF TM-5600
Spesifikasi
Printer
Printer type
5-colour 36" (914 mm)
Number of nozzles
15,360 nozzles
(MBK 5,120 nozzles,
Other colours 2,560 nozzles each)
Maximum print resolution
2,400 × 1,200 dpi
Nozzle pitch
1,200 dpi (2 lines)
Line accuracy
± 0.1% or less
Ink capacity
Sales ink: 55 ml (MBK/BK/C/M/Y)
Bundled starter ink: 80 ml (MBK) / 55 ml (BK/C/M/Y)
Ink type
Pigment ink
Printer language
SG Raster (Swift Graphic Raster)
HP-GL/2, HP RTL
JPEG (Ver. JFIF1.02)
CALS G4
Printing solutions
Direct Print Plus, Free Layout plus, PosterArtist Windows/Web/Lite, Wi-Fi Connection Assistant, Canon PRINT (mobile), Canon Print System (mobile)
Management solutions
Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box
Standard interfaces (built-in)
USB B port:
(series B, 4 pins)
Hi-speed USB
Full speed (12 Mbit/sec)
High speed (480 Mbit/sec)
Bulk transfer
Network:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
IEEE 802.3ab 1000base-T
SNMP (Canon-MIB), HTTP, TCP/IP (IPv4/IPv6), FTP
Wireless LAN:
IEEE802.11 b/g/n
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
WPA-EAP (AES)
WPA2-EAP (AES)
WPA3-EAP (AES)
Standard memory
2 GB
Hard disk
-
Display
LCD (4.3 inch / 10.9 cm TFT colour)
Print Speed
CAD Drawing (Fast Q5 mode) in A0: 41 sec
Poster (Standard mode) in A0: 3 min 10 sec
Media Handling
Media Feed and Output
Roll Paper: One Roll, Top Load, Front Output
Cut Sheet: Top Load, Front Output
Media Width (Roll/Cut Sheet):
Roll width: 203.2 - 917 mm;
Cut sheet width: 203.2 - 917 mm
Media Thickness (Roll/Cut Sheet): 0.07 ~ 0.8 mm
Media Core Size: 2 inch; 3 inch core (Optional)
Min. Printable Length
Roll Paper: 203.2 mm
Cut Sheet: 279.4 mm
Max. Printable Length
Roll Paper: 18 m
Cut Sheet: 1,600 mm
Maximum Outer Roll Diameter: 150 mm or less
Borderless Printing: Supported for roll paper
Margins (Recommended Area)
Roll Paper (Top, Bottom, Sides): 20 mm, 3 mm, 3 mm
Cut Sheet (Top, Bottom, Sides): 20 mm, 20 mm, 3 mm
Margins (Printable Area)
Roll Paper (Top, Bottom, Sides): 3 mm, 3 mm, 3 mm
Cut Sheet (Top, Bottom, Sides): 3 mm, 20 mm, 3 mm
Dimensions & Weight
Dimensions (W x D x H):
Main Unit
1,285 × 720 × 421 mm (operation panel is not tilt up)
Main Unit + Printer Stand + Basket (SD-24)
1,285 × 868 × 1,041 mm (basket opened)
1,285 × 756 × 1,041 mm (basket closed)
Weight
Main Unit
48 kg
Main Unit + Printer Stand + Basket (SD-24)
60 kg
Packaged Dimensions (W x D x H)
Printer (main unit with stand and pallet) (SD-33)
1,462 × 913 × 769 mm
Packaged Weight
Printer (main unit with stand and pallet) (SD-33)
101 kg
Power & Operating Requirements
Power Supply
AC 100 - 240 V, 50 - 60 Hz
Power Consumption
Printing
Approx. 65 W
Sleep Mode
Approx. 1.6 W
Power Off
Approx. 0.06 W
Operating Environment
Temperature
15 ～ 30 °C
Humidity
10 ～ 80 % RH (no dew condensation)
Acoustic Sound
Acoustic Power
Operation: Approx. 6.0 Bels
Acoustic Pressure
Operation: Approx. 39 dB (A)
Standby: 35 dB (A) or less
Accessories
Printer Stand (Optional)
-
2/3" roll holder
RH2-35
Card Reader Interface for uniFLOW
RA-02
Consumables
Ink Tank:
Magenta: PFI-8031 (55 ml)
Matte black: PFI-8033 (55 ml)
Black/Cyan/Yellow: PFI-8030 (55 ml)
Print Head
PF-06
Cutter blade
CT-08
Maintenance Cartridge
MC-31
Lain-Lain
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- USB Thumb drive printing is not supported.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) Supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Varies according to the OS and application.
- Including roll holder set, excluding print head and ink tanks.
- Using wired LAN.
- Acoustic Power and Pressure are measured using ISO 7779 standard.
